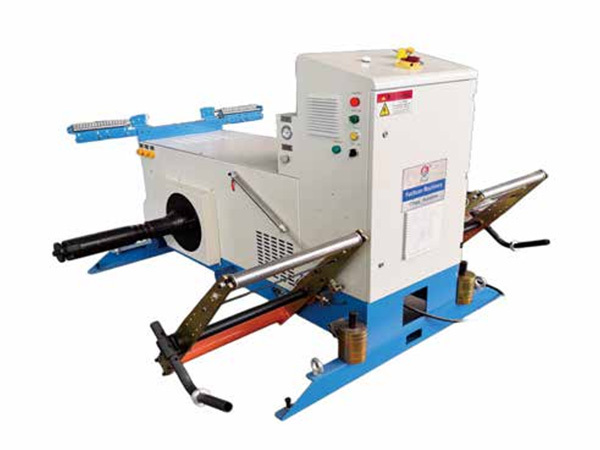

优点：Merits
1.可用于并丝放线,也可用于线束放线,而且两盘线互不干扰,独立放线,操作方便。
1.Can be used for merging and unwinding or wirebundle unwinding.The to spools do not interfere witheach other and can be unwound independently.making operation convenient.
2..本设备装备手动开关，实现一键夹紧、放松线盘，节省时间，上下线盘方便快捷，不用手动装卸顶锥及手动用扳手锁紧
螺母，减少人工成本。
2.This equipment is equipped with a manual switch to achieve a key to clamp and relax the bobbin, saving time, up and down the bobbin is convenient and quick, without manual loading and unloading of the top cone and manual wrenches to lock the nut, reducing labour costs.
3.夹紧力≥400kg，夹紧牢固，线盘正常运转时不会松动。
3.Clamping force ≥ 400kg, firmly clamped, the bobbin will not come loose during normal operation.
4.可配合AGV物流小车或非AGV小车使用。
4.Can be used with AGV logistics trolleys or non-AGV trolleys.
|
设备型号
Model
|
FC-630单轴
Single-axis
|
FC-630双轴
Twin-axis
|
FC-630三轴
Three-axis
|
FC-630四轴
Four-axis
|
FC-630六轴
Six-axis
|
FC-630八轴
Eight-axis
|
|
气源
Air supply
|
大于0.6 MPa
Greater than 0.6MPa
|
|
线径范围
Wire diameter range
|
φ0.15-φ0.64mm
|
|
线速度
Wire speed
|
MAX300m/min
|
|
放线盘
Pay-off reel
|
φ630*φ127(锥孔深20mm锥孔)*475
|
有轴式/ 无轴式
优点：Merits
1.线速度可达500m/min,可频繁启停，适应全自动小盘并丝收线机用
1.Line speed up to 500m/min, can be frequently started and stopped, adapt to automatic small disc merging and spooling machine.
2.可做有轴式或无轴式。
2.Available as shafted or shaftless.
|
设备型号
Model
|

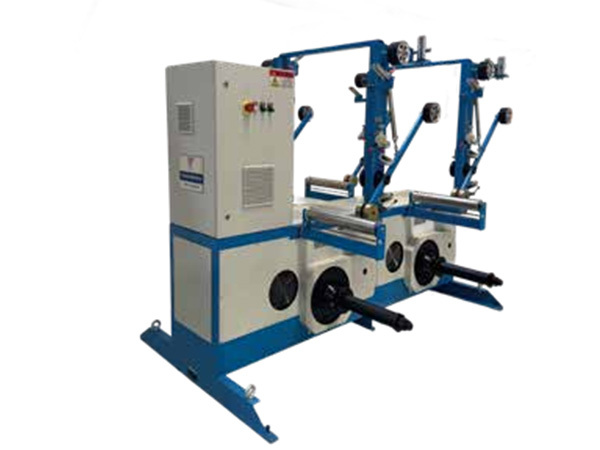

FC-630并丝动力放线机(有轴式)
FC-630 parallel wire power pay-off machine(spooledtype)
|

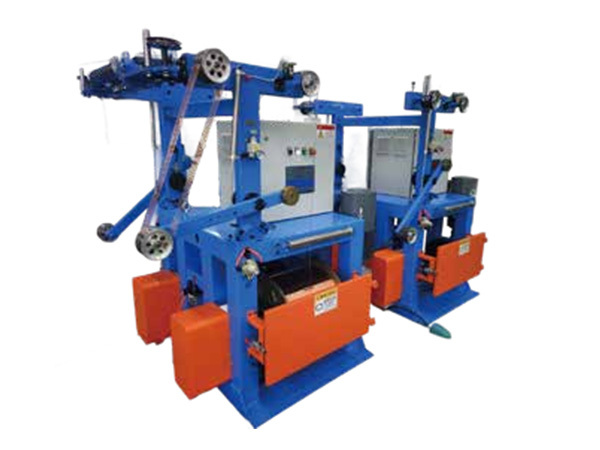

FC-630并丝动力放线机(无轴式)
FC-630 parallel wire power pay-off machine(shafless type)
|
|
用途
Usage
|
主要用于630盘并丝铜线放线，配合全自动小盘并丝收线机用
Mainly used for 630 discs of copper wire pay-off with automatic smalldiscs of wire pay-off machine.
|
|
放线盘
Pay-off reel
|
φ630
|
|
头数
Headcount
|
双轴/四轴
Two-axis/four-axis
|
双轴
Two-axis
|
|
放线线径
Payoff line diameter
|
5/φ0.08~8/φ0.15
|
|
最大线速度
Maximum wire speed
|
500m/min
|
|
放线方式
Release method
|
主动放线
Active Release
|
|
张力调节
Tension adjustment
|
在摆杆上安装有气缸，可通过调压阀调节气缸的压力来改变放线张力，也可使用重锤调节张力
There is a cylinder installed on the pendulum,the pressure of the cylinder can be adjusted through the
regulator to change the tension of the unwind,or the tension can be adjusted by using a weight
|
|
线盘顶紧方式
Bobbin jacking method
|
顶锥+螺母锁紧
Top cone+nutlocking
|
顶锥+气动锁紧
Top cone+pneumatic locking
|
|
上盘方式
Way of settingupaplate
四轴外形尺寸
Four-axis externaldimens
|
手动液压车
ManualHydraulic Truck
|
气动顶盘
Pneumatic roof disc
|
|
ions 2400L*1800W*1850H
|
3800L*1500W*1800H
|
