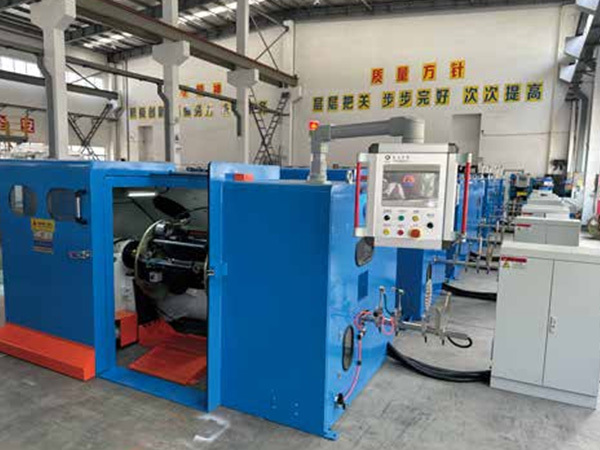

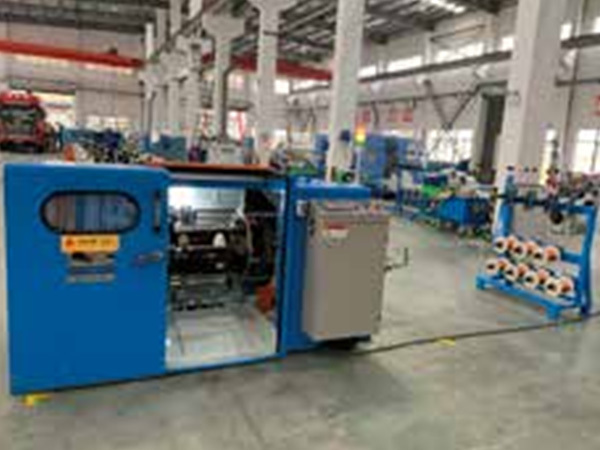

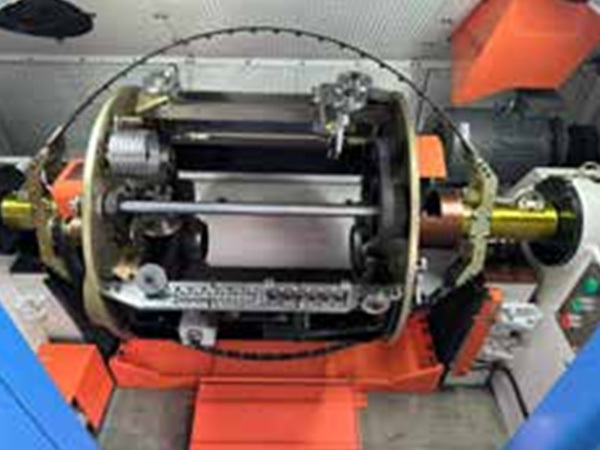

优点 Merits
1.退扭率:触摸屏内设定,0~100%内可调,绞合的线材无应力、不打扭;
1.Back-twist rate:Set via the touch screen, adjustable within 0-100%,ensuring the stranded wires are stress-free and non-twisting.
2.退扭电机:同服电机+驱动器;
2.Back-twist motor: Servo motor + driver.
3.两组整直轮，上下、前后可调整;
3.Two sets of straightening wheels, adjustable up and down, front and back.
4.预留以太网端口，可接入物联网，显示转速、绞线规格、线速、产量、设备保养等。
4.Ethernet ports are reserved for IoT access, which can display rotation speed, stranding specifications, wire speed, output, equipment maintenance, etc.
|
设备型号
Model
|
FC-500C退扭
|
FC-650C-2退扭
|
|
绞合用途
wisting Usage
|
适合于合金铜线、铜包钢、锡铜合金、不锈钢丝、等硬结构导体绞合
Suiae for aloy copper wire,coperdad steel,inccpper alloy stanlessteel wire,and oher hard
struchure conduchors stranding.
|
|
单丝线径(mm)
Single Wire Dia
|
φ0.08~0.45
|
φ0.12~0.45
|
|
绞合外径(mm)
Outer diameter of stranding
|
φ0.36~1.56
|
φ0.70~2.05
|
|
绞合截面积(mm²)
Cross Section
|
0.05~0.15
|
0.3~2.5
|
|
节 距 m m )
Pitch
|
4.0-34.5
|
11.6-67
|
|
绞向
Stranding direction
|
左或右向可自由选择
Free option to SZ
|
|
收线盘尺寸(mm)
Take-up Size
|
φ400~φ500
|
φ500~φ630
|
|
最大转速(pm)
Max Speed
|
3000(600DTPM)
|
2400(4800TPM)
|
|
主电机功率
Main motor power
|
5.5KW
|
11KW
|
|
张力控制方式
Tension control method
|
触膜屏+PLC+磁粉离合器收线，保证空盘到满盘张力恒定
Toudh screen+PLC+magnetie powder cluch ersure the constant ersin fiomempty o ful bobbin
|
|
退扭率
De-torque rate
|
无级可调
ínfinitely adjustable
|
|
保护
Protecion
|
内外部断线自动刹车，米到自动停机
intemal and extemal wire out off automatic brake,
automatic shutdown when the meterreaches
|
|
刹车方式
Brake Type
|
电磁刹车制动
Flectromagnefic Brake Braking
|
|
排线方式
Traverse
|
精密排线或轴承式光杆排线，排幅排距均可调整
Precious traverse Or screw type polish wire traverse,winding pitch and breadth are adjustable
|
|
外形尺寸
Dimensionsmm)
|
2900L×1300W×1500H
|
3650L×1800W×1900H
|
